Logic Gates

http://logic.ly/demo/

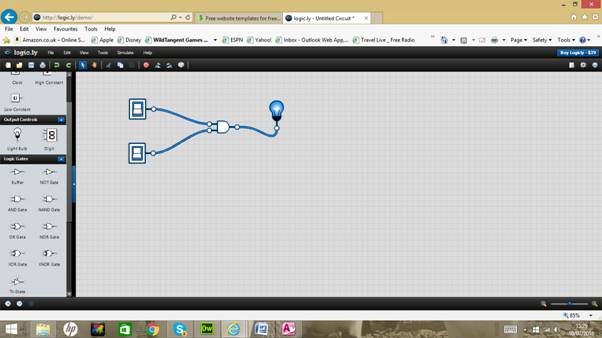

AND Gate.





A	B	X = A AND B
0	0	0
0	1	0
1	0	0
1	1	1











OR Gate



A	B	X= A OR B
0	0	0
0	1	1
1	0	1
1	1	1

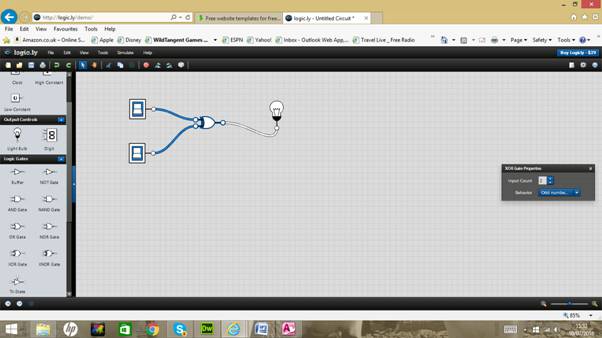

XCLUSIVE OR Gate



A	B	X
0	0	0
0	1	1
1	0	1
1	1	0















NAND Gate



A	B	C	X
0	0	0	1
0	1	0	1
1	0	0	1
1	1	1	0

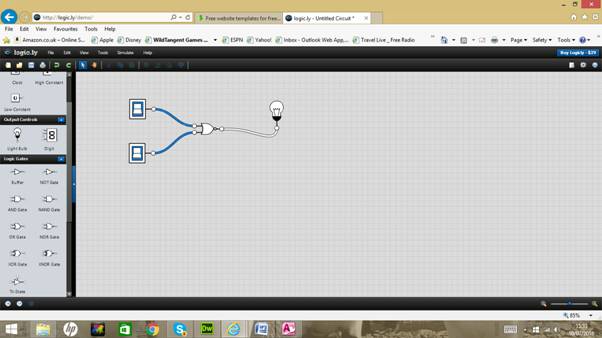

NOR Gate

A	B	X
0	0	1
0	1	0
1	0	0
1	1	0
